Rope, Steam & Sealing: The Basics of Valve Packing

Mechanical packing may look simple, but it has a long history shaped by ships, steam engines, industrial growth and environmental responsibility. The material that now seals valve stems in refineries, chemical plants and power stations started life in a very different setting: a rope workshop in colonial Boston.

From ropewalks to revolution

In the mid-1700s, Boston was home to long, narrow workshops called ropewalks, where fibers were stretched and twisted into miles of rope. The British Navy depended on this rope to control the sails and rigging of its ships. Rope was not just a product — it was a strategic advantage – and the people who made it understood their importance.

Rope makers were skilled craftsmen and, in many cases, deeply independent. They also felt the growing frustration toward British military presence. In early 1770, arguments and physical fights broke out between rope workers and British soldiers stationed nearby. These ropewalk clashes helped raise tensions that led directly into the Boston Massacre. In a very real sense, rope helped spark the American Revolution.

This connection matters, because the earliest sealing materials used in pumps and valves came directly from ropemaking. Braided fibers — coated in waxes, tallow or oils — were packed around moving shafts to keep steam, water or product contained. The first packings were simply rope with a job to do.

The story begins with rope.
And then it follows the rise of industry.

James Watt and the steam engine

As industry expanded, sealing demands grew. One of the turning points came with James Watt in the late 1700s. Watt did not invent the steam engine, but he improved it so dramatically that it became practical for widespread use. His key improvement, the separate condenser, allowed the engine cylinder to stay hot while exhaust steam was condensed elsewhere, increasing efficiency.

But to take advantage of that improvement, the engine had to hold steam pressure. The rods and pistons passed through openings that leaked. Any loss of steam meant loss of power and wasted coal.

The solution was familiar to rope makers: braided packing.

Watt and others packed the space around moving rods with braided fibers that had been coated with grease or animal fat. The packing needed to seal pressure while still allowing motion and had to be adjusted over time to maintain performance. This simple idea — a flexible material that can seal while something moves through it — remains the core purpose of valve packing today.

Packing has always existed where motion and pressure meet.

What packing does in valves

In a valve, packing seals the gap between the valve stem and the stuffing box so that fluid does not escape. The packing must maintain this seal while the stem moves through multiple cycles, temperature changes and pressure variations. Even though packing makes up a small portion of the valve’s cost, its job has a big impact on safety, reliability and compliance.

If packing does not perform, the results can be serious. Product loss can increase operating cost. Leaks can create fire or safety risks. Extra friction can make a valve difficult to operate or cause stem wear. And in today’s regulatory environment, leakage can also create reportable emissions events.

Packing may look simple, but it is a critical sealing component.

Modern materials are engineered, not just woven

While packing still resembles rope, today’s materials are engineered for specific applications. Flax and hemp have been replaced by fibers that handle extreme heat, corrosive chemicals, cycling stress and emissions control requirements. Graphite packing is used in high-temperature steam valves. PTFE is preferred in chemical service because it resists attack and provides very low friction. Carbon fiber supports high cycle service, especially in control valves that stroke frequently. In many cases, packing is now made from hybrid braids that combine properties to balance sealing pressure, durability and ease of operation.

These fibers are braided under controlled tension to maintain uniform density. The packing is then cut into rings and stacked, forming a sealing set that interacts mechanically with the valve stem and stuffing box.

Packing today is no longer simply rope with lubricant. It is a designed sealing element.

How packing seals: Pressure and balance

Packing seals by converting axial force into radial pressure. When the gland follower is tightened, it compresses the packing rings downward. This compression forces the packing outward against the valve stem and stuffing box wall. The radial pressure created must be high enough to stop fluid leakage, yet low enough that the valve stem can still move freely.

This balancing act defines packing performance. Too little pressure leads to leakage. Too much pressure increases friction, causes stem scoring and can prevent actuators from seating or stroking the valve correctly. Friction is not something to eliminate entirely — it is a necessary part of sealing — but it must be controlled and stable, not excessive.

Once installed, packing should be cycled and allowed to settle. This consolidation step helps it form a uniform sealing surface. After consolidation, only small adjustments are needed to maintain performance.

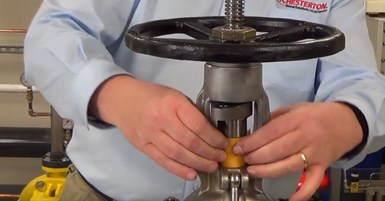

Why installation matters most

The performance and life of packing depend heavily on how it is installed.

Packing rings must be cut to fit cleanly around the stem. Rings that are too short leave a gap where leakage will form; rings that are too long will bunch up and distort under compression. Cutting on a mandrel that matches the stem ensures proper length.

Next, the gland load must be applied deliberately, not by feel. Each packing manufacturer has specific calculations to calculate a gland nut torque to achieve the level of sealing.

Finally, the stem and stuffing box surfaces must be inspected. A scratched stem creates a direct leak path that no packing can compensate for. A corroded stuffing box wall produces uneven compression. Proper sealing depends on surface condition.

These steps are simple, but they determine whether packing works for months or fails in weeks.

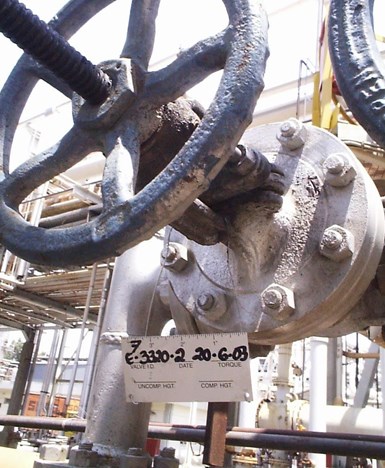

The emissions era

Methane has a global warming impact more than 25 times greater than CO_₂.  As a result, valve leakage that once went unnoticed is now regulated. Years ago, valves leaking up to 10,000 ppm were considered acceptable. Today, most facilities aim for below 100 ppm, and many target 50 ppm or less.

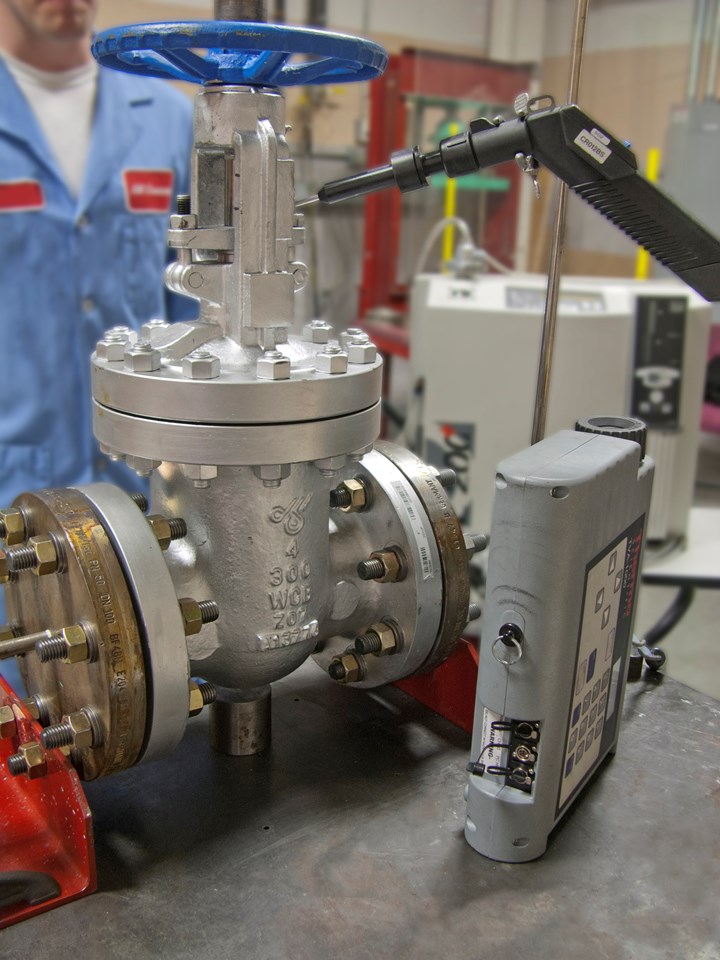

This shift led to formal testing requirements. API 622 tests packing under thermal and mechanical cycling. API 624 evaluates the performance of valves assembled with qualified packing. ISO 15848 classifies emissions performance internationally.

These standards changed not only the packing itself, but also expectations around stem finish, valve design tolerances, gland follower flatness and load control procedures. Low-emissions performance is not simply a property of the packing — it is a system performance result that requires alignment from design through installation and maintenance.

In an era of tightening methane accountability, fundamentals are not optional — they are environmental compliance in motion.

Why training matters

Even with improved materials and tighter manufacturing controls, many valve leaks result from preventable installation errors. Rings cut incorrectly, glands over (or under)-tightened, stems damaged but not repaired or packing that is adjusted repeatedly instead of consolidated properly — these are simple problems that appear again and again.

The solution is consistent, practical training. Installing packing is not difficult, but it requires understanding, not guessing.

The role of the Fluid Sealing Association

The Fluid Sealing Association (FSA) plays a key role in supporting sealing reliability across the industry. The FSA provides best practice guides, training materials, and field-proven recommendations for installing and maintaining compression packing. Their goal is not to prioritize one manufacturer’s solution, but to raise the industry’s collective sealing knowledge so plants can achieve reliable, low-emissions operation.

As methane reduction becomes increasingly important, access to shared training and clear standards is essential.

Conclusion

From the ropewalks of Boston to James Watt’s steam engines to today’s low-emissions plant operations, packing has played a part in every major chapter of industrial development. The materials have changed. The performance expectations have increased. But the fundamentals remain:

Understand how packing seals.
Install it carefully.
Apply correct load.
Inspect valve components.
Adjust with purpose, not force.

Packing may look like rope, but it protects reliability, safety and environmental performance.

Ron Frisard is packing and gasketing global product line director for A.W. Chesterton Company, where he leads global strategy, product development and market expansion for high-performance sealing solutions. He has been an involved leader in the Fluid Sealing Association and is a frequent author of technical articles on sealing technology.
